0 ~ 500mg / Kg AC220V;50Hz Programmable constant temperature and humidity machine(GW-051C)

Product Categories
Dongguan Guo Feng Testing Machine Co., Ltd.
Contact Now

0 ~ 500mg / Kg AC220V;50Hz Programmable constant temperature and humidity machine(GW-051C)

  • 1
  • 2
  • 3

Brand Name : Great Win

Model Number : GW-051C

Certification : CE CNAS

Place of Origin : China

MOQ : 1piece

Price : USD3000-6618

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Pieces/Year

Delivery Time : 20 work days

Packaging Details : Wooden case

Packaging : Wooden Case

Power Supply : AC220V;50Hz

Power : about 3.5Kw

Measurement Range : 0 ~ 500mg / Kg

Dimensions : Width 1010 X Depth 870 X Height 1760mm

Studio size : Width 500 X epth 400 X Height 500mm

Contact Now

0 ~ 500mg / Kg AC220V;50Hz Programmable constant temperature and humidity machine(GW-051C)
Product introduction:

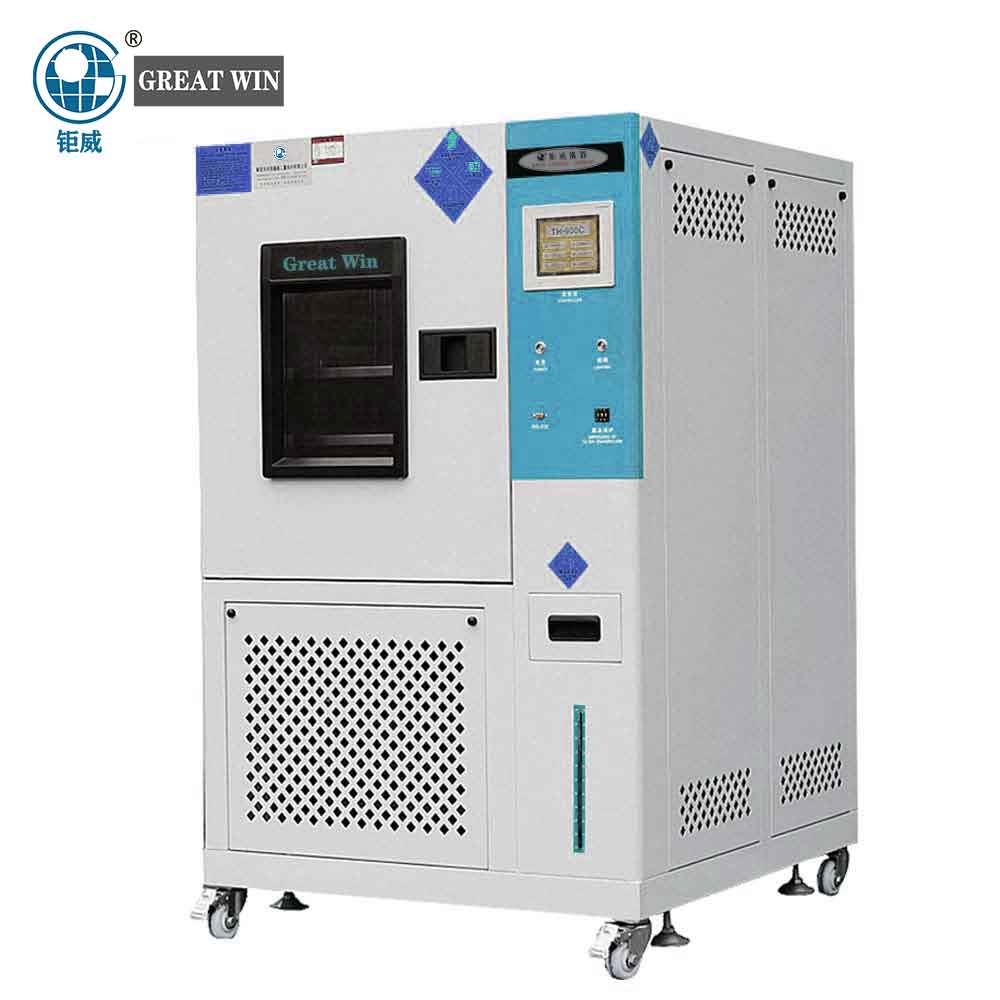

The constant temperature and humidity test chamber is used to test electronic products, raw materials, toys, furniture, textiles, etc. under high and low temperature or hot and humid environments.
Main technical indicators of testing machine:
Studio size width 500 × depth 400 × height 500mm
Dimensions Width 1010 × Depth 870 × Height 1760mm
Temperature range -20 ºC ~ + 150 ºC
Temperature fluctuation ≤ ± 0.5 ºC
Temperature uniformity ≤ ± 2.0 ºC
Temperature deviation ≤ ± 2 ºC
Temperature rise and fall from + 20 ~ -20 ºC, about 60min, from + 20-100 ºC, about 40min
Humidity range 20%-98% R.H (AT + 25 ºC ~ + 85 ºC)
Humidity error + 2 / -3% R.H (above 75% R.H), ± 5% R.H (below 75% R.H)
Wind speed 1.7 ~ 2.5m / s;The above indexes are measured and tested in the environment within 1/6 space from the inner wall of the cabinet under the conditions of ambient temperature ≤25 ºC, normal pressure, no load and no load
Power about 3.5Kw
Power supply 220V ± 10% V; 50Hz

Meet relevant standards and test methods:
GB / T2423.22-87Nb,
GJB1032-90,
MIL-STD-2164 / (E / C),
GB / T2423.4- 93,
GB / T2423.34-86,
GJB150.9-86
